4M200L Series Soleniod Valve
4M210-08L custom solenoid valve with extended valve body

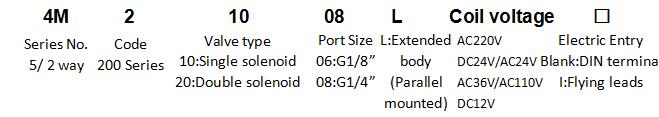

Order code
Technical parameter
|
Model |
4M210-06L |
4M220-06L |
4M210-08L |
4M220-08L |
|
|
Fluid |
Air |
||||
|
Acting |
Internal pilot |
||||
|
Valve type |
5/2 way |
||||
|
Orifice size |
14mm2 |
16mm2 |
|||
|
Lubrication |
No required |
||||
|
Port size |
In=out=G1/8 |
In=out=G1/4 |
|||
|
Protective class |
IP65 |
||||
|
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||
|
Proof pressure |
1.2MPa(170psi) |
||||
|
Material of body |
Aluminum Alloy |
||||
|
Temperature |
-5℃~60℃ |
||||
|
Response speed |
<0.05s |
||||
1.NAMUR solenoid valve with extended valve body,fit for parallel installation
2. 5/2 Solenoid Valve 220V
